20kw Silent marine diesel generator 10kw for boat with sea water pump class approval certificate

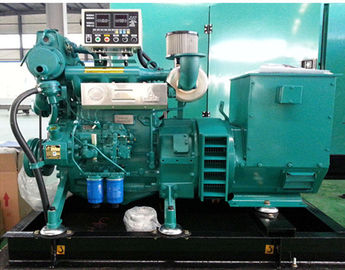

Duży Obraz : 20kw Silent marine diesel generator 10kw for boat with sea water pump class approval certificate

Szczegóły Produktu:

Place of Origin:	China
Nazwa handlowa:	weichai- deutz
Orzecznictwo:	ISO9001:2008, CE
Model Number:	GNRDM20
Product name:	Marine Generating sets
Engine brand:	Weichai-deutz
Alternator:	100% Copper ,Brushless ,AVR self-regulated
Rated Power:	10kw
Rated RPM:	1500rpm or 1800rpm
Frequency:	50Hz or 60Hz
Rated Voltage:	120V , 220V, 380V, 440V

Zapłata:

Minimum Order Quantity:	1 set
Cena:	negotiable
Packaging Details:	Wooden Package / Plywood case
Delivery Time:	Within 15 days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	200 sets Per Month

Kontakt

Szczegółowy opis produktu

Cooling system:

Sea water cooling with heat exchanger

Podkreślić:

marine diesel genset

marine generator set

20kw Silent marine diesel generator 10kw for boat with sea water pump class approval certificate

1.Reliable dynamic performance

2.Compact structure

3.Long life

4.Low fuel consumption

5.Low noise

6.Low emissions

7.Adaptability to environmental change

8.Ability to work under the harshest conditions

Standard Configure of marine diesel generator:

1) High Performance Marine Engine	6) MCCB, Muffler, Air filter
2) Brushless ,AVR self-regulated Alternator (IP23)	7) 2*12V Heavy duty start batteries
3) Steel base frame with shock absorber	8) Battery cable & Atteched accessories
4) Standard control box	9) Manual books and parts books
5) Sea water cooling heat exchanger	10) Optional digital monitor

The Marine Diesel Generator is widely used in inland and coastal waters, offshore market carriers,

fishing boats,

yatch,Ferry boat ,ships and other projects.

Marine Diesel Generator Set		Weichai Deutz 226B Series Diesel Engine
(400/230V/120C, 50Hz/60Hz, 3 P 4W)		(Electrical Starting, Dual-circulate water-cool)
Genset Model	Rated Power	Engine Model	Max* output	Rated Speed	Governing Method
Genset Model	(KW)	Deutz	(KW)	(rpm)	Governing Method
GNRDM-12	12	D226B-3C	22	1500	Mechanical
GNRDM-16	16	D226B-3C	22	1500	Mechanical
GNRDM-20	20	D226B-3CD	30	1500	Mechanical
GNRDM-24	24	D226B-3CD	33	1500	Mechanical
GNRDM-30	30	TD226B-3CD	44	1500	Mechanical
GNRDM-40	40	TD226B-4CD	66	1500	Mechanical
GNRDM-50	50	TD226B-4CD	66	1500	Mechanical
GNRDM-64	64	TD226B-6CD	99	1500	Mechanical
GNRDM-75	75	TD226B-6CD	99	1500	Mechanical
GNRDM-90	90	TBD226B-6CD	132	1500	Mechanical
GNRDM-100	100	TBD226B-6CD	132	1500	Mechanical
GNRDM-120	120	TBD226B-6CD5	145	1500	Electrical
