3kw 4kw 5kw Marine Generator Highly Durable With Water Cooled Engine Remote Control

Duży Obraz : 3kw 4kw 5kw Marine Generator Highly Durable With Water Cooled Engine Remote Control

Szczegóły Produktu:

Place of Origin:	China
Nazwa handlowa:	GENOR
Orzecznictwo:	ISO9001:2008, CE
Model Number:	GNRDM5
Product name:	Marine engine generator
Engine brand:	Genor
Alternator:	Brushless ,AVR self-regulated
Rated Power:	5kw
Rated RPM:	1500rpm or 1800rpm
Start system:	Electric auto start
Rated Voltage:	120V , 220V , single phase

Zapłata:

Minimum Order Quantity:	1 set
Cena:	negotiable
Packaging Details:	Wooden Package / Plywood case
Delivery Time:	Within 15 days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	200 sets Per Month

Kontakt

Szczegółowy opis produktu

Podkreślić:

marine diesel genset

marine generator set

3kw 4kw yacht silent marine diesel generator 5kw with water cooled engine remote control

Advantage:

Low noise running within 60dBA at 7meters.
Special structure design, perfect portability
Reliable dynamic performance
Easy installation and connection.
Low fuel consumption
Compact and attractive aesthetic outlooking.
15 months or 1200 running hours warranty
ISO and CE certificated.

The Marine Diesel Generator is widely used in excursion boats, yachts, fishing boats and other projects.

the 5kw marine generator is designed with unique water cooled structure.The engine and muffler are cooled by externally circulated sea water or river water, reduce temperature in the compartment of the yacht.

Remote control panel with cable, complete protection, alarm and shutdown to high water temperature, low oil pressure, low/over speed, low/high AC/DC voltage, low/high frequency, etc.

Specification :

Generator Set	Model	GNRM5
	Rated power(KW)	5 / 6
	Rated voltage(V)	115/230 120/240
	Rated frequency(Hz)	50 / 60
	Waveform distortion	Sinewave, distortion ≤5%
	Noise level(dB@7m) w/100% load	60
	Overall dimension	≤885x625x650
	(L×W×H)(mm)	≤885x625x650
	Overall weight(kg)	≤320
	Fuel tank capacity(L)	Share fuel tank with marine vehicle
	Type	Three cylinder, direct injection, four stroke,water cooled
	Bore×Stroke(mm)	75×84
	Rotation speed(r/m)	1500 /1800
	Governor system	Mechanical
	Starting mode	12V DC electric start
	Filter system	Water cooled air filter, fuel filter, oil filter
	Cooling type	External cooling by river water or sea water
	Heat exchanger(L)	13
	Muffler	Sea Water-cooled
	Fuel consumption(g/kw.h)	≤210
	Oil capacity(L)	4
Alternator	Rated power(KW)	5 / 6
	Excitation mode	Brushless, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Single phase, three wire
	Number of pole	4
	Insulation grade(stator/rotor)	H/H
	Voltage regulation range w/o load	≥95%~105%
	Steady-state voltage deviation	Less ±1%
	Interference factor	TIF<50,THF<2%
	IP grade	IP23
Control panel	Control on power output	Remote cable electric switching ABB circuit breaker
	Installation	Remote cable connected
	Auto function	Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm
	Parameter display	AC voltage, frequency, running hour, charging voltage

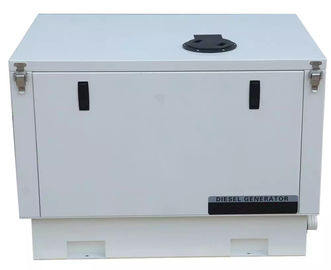

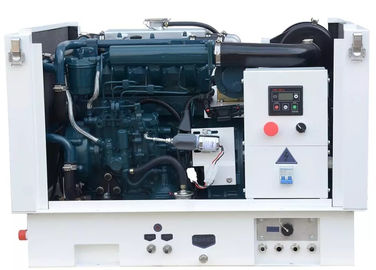

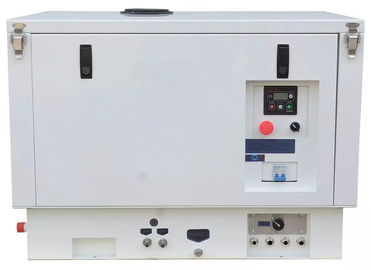

3kw 4kw 5kw Marine Generator Highly Durable With Water Cooled Engine Remote Control 0

3kw 4kw 5kw Marine Generator Highly Durable With Water Cooled Engine Remote Control 2
